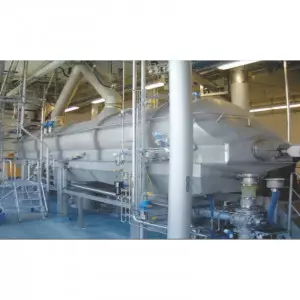

Vibratory Fluid Bed Dryer

The process air is supplied to the bed through a special perforated distributor plate and flows through the bed of solids at a velocity sufficient to support the weight of particles in a fluidized state. Bubbles form and collapse within the fluidized bed of material, promoting intense particle movement. In this state, the solids behave like a free flowing boiling liquid Advanced method of drying wet/semi wet solids Unlike in Tray Drying every solid particle is floating in the HOT STREAM of Air which Is blown from down to up creating material layer in fluidised state Almost every wet particle directly receives the heat energy from hot Air resulting in uniform and quick drying.

Features of TRIVENI Continuous Fluid Bed Dryers

Very versatile process equipment for uniform and efficient drying of products. Fully automatic operation based on PLC control / without PLC control Minimum handling and more hygienic Lifting & tilting device of product container for easy handling Option - steam heated or electric heated blower cGMP model with documentation as option.

Material of Construction

AISI 304 / AISI 316 / Custom made.

Accessories

Heat recovery unit can be incorporated,

cyclone, bag filters,multiclones,

wet scrubber.

Applications

Chemical / Fertilizer / Food - salt, sugar /

Mineral - Sand, Aluminum / Ore calcining /

Metal oxidation / Sludge Incineration / Pyrolysis of Plastic Waste / Pigment etc.

Capacity available from 5 kg/hr to
5000 kg/hr.
water/solvent evaporation
